SM100B Boat Alarm System

Description

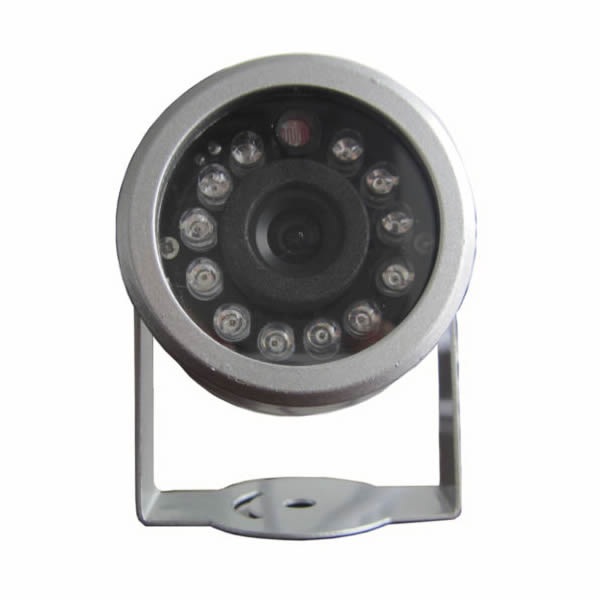

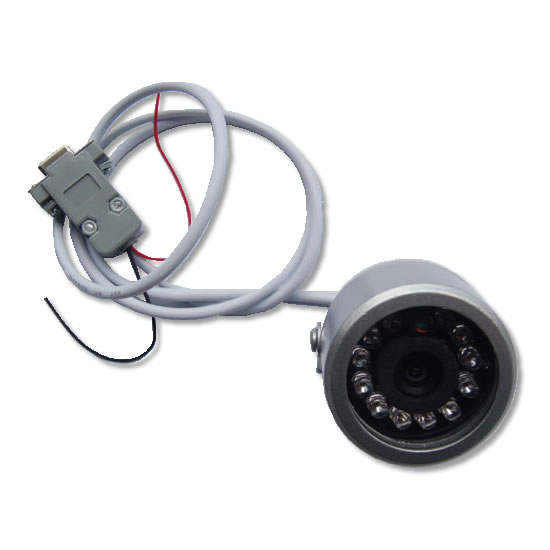

Two SD cameras (640×480) can be connected to this Trek Transponder.

Simply connect the SM100B to your boats batteries, add bilge float switches, cameras and plug in any common SIM card and the unit is immediately monitoring your boat and its location, and can send alarms to your phone and up to 5 others by SMS.

You can also add PIRs or door switches to monitor security, temperature sensor for fridge and any compatible siren/flashing light.

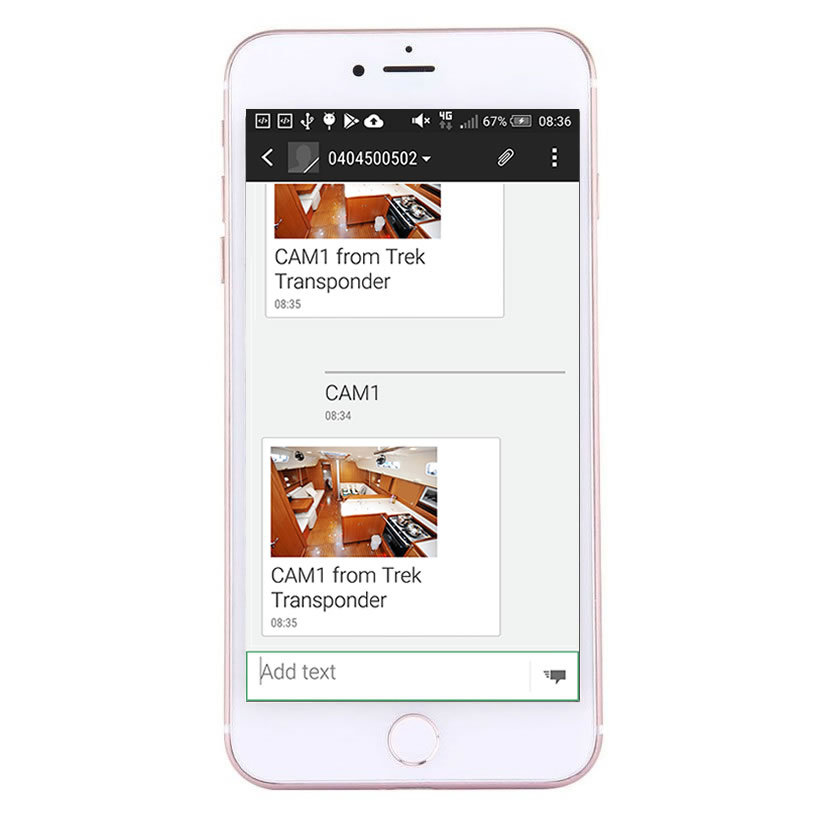

Cameras are invaluable for seeing in detail the cause of an alarm on board, as well as who is on board. You can connect total of two SD cameras to this unit.

Early warning of problems and knowing what they are gives you the opportunity to solve those problems before they become expensive, disasters or insurance claims.

This model Trek Transponder also features fully automatic periodic sending of status reports or camera images, selectable from hourly to 24 hourly.

Trek Transponder SM100B has three output relays, one is automatic and triggered by security inputs and is intended for sirens or flashing lights. The second pair are manually controllable by SMS from your phone and can be used for pumps, deck lights and many applications.

Trek Transponder SM100B operates from 12V or 24V and draws only 0.05A so is easy to install on most boats. Standby power use is so low its no problem for boats on moorings. No special SIM or Data SIM is required, only a simple phone SIM.

Trek Transponder is Australian Made and has a 2-year warranty.

Trek Transponder SM100B Specifications

• Full Front Panel Indication (LEDs showing status of inputs and outputs)

• Two SD cameras (640×480) can be connected to this Trek Transponder.
• 4G Ready (Free Aldi Telstra Network SIM included)
• GPS Built in Geofence (alarm if boat moves outside designated area)
• 12V or 24V Operation
• 4 Battery Monitor Inputs
• 2 Bilge Float Switch Inputs
• 2 PIR Movement Detector inputs
• 3 Hatch / Door Entry inputs
• 2 6V Power outputs for PIRs (12V optional)

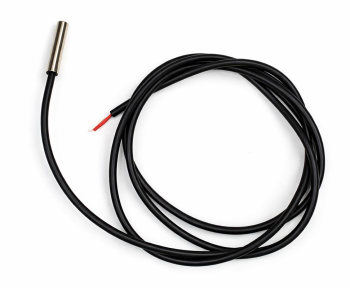

• Fridge Temperature Input: -25 to +105 Deg C
• 1 Shore Power Input
• 2 Manual relay output (often used for deck lights or fridge on/off))
• 1 Auto Triggerable relay output (often used for siren)
• Inputs and Outputs can be renamed (ie ENT1 to Saloon)
• Input OK/Alarm can be inverted (ie NO to NC)
• Built in Pitch and Roll motion sensor (detects boat listing or high seas)
• Automatic periodic reporting from hourly to 24 hourly
• Works with most Australian SIM cards (global version on special order)
• External GPS and External 4G Antenna option
• Optional Bluetooth Interface for local control without SMS
• Optional 90dB Buzzer on-board acoustic alarm
• NMEA-0183 Nav Data Output for free OpenCPN Chart Plotter
• Anchor Watch for cruising

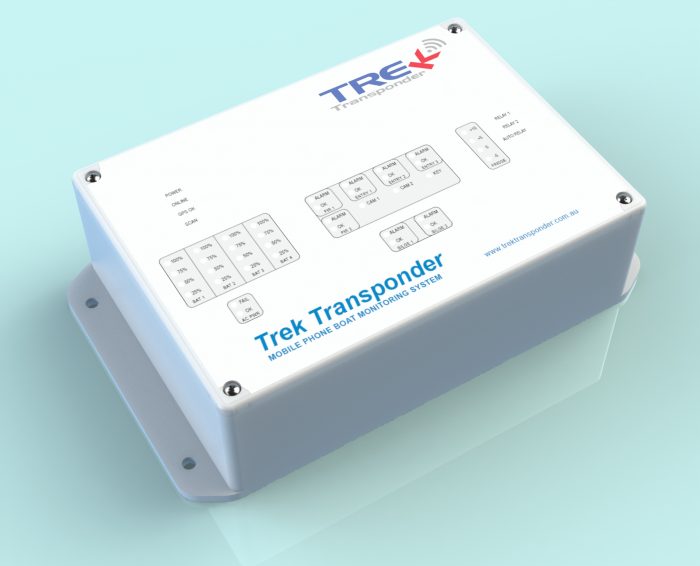

Front Panel Indications

• Yes: All inputs, Power, GPS and Telco online and Relay status
• Front Panel indication: Commanded ON/OFF by SMS

Outputs

• Automatic relay 1 (10minute contact closure triggered by PIR and Entry Inputs):   4A 30VDC  N.O.
• 2 x Manual Relay (controlled by SMS):  4A 30VDC  N.O. contact
• PIR Power: 2 x 6V (12V optional) regulated over 8V to 32V input voltage range

Power

• Operating voltage: 8V to 30V   (12V 24V systems automatically detected)
• Operating power: < 0.050A while monitoring on standby

GPS

• Antenna: Built in, external optional
• Channels: 48, parallel tracking
• Correlators: 400,000
• Frequency: L1 (1575MHz)
• Horizontal Accuracy: < 3m

Physical

• Size: 171x121x55mm
• Case Material: Polycarbonate
• Mounting:Flange left and right side

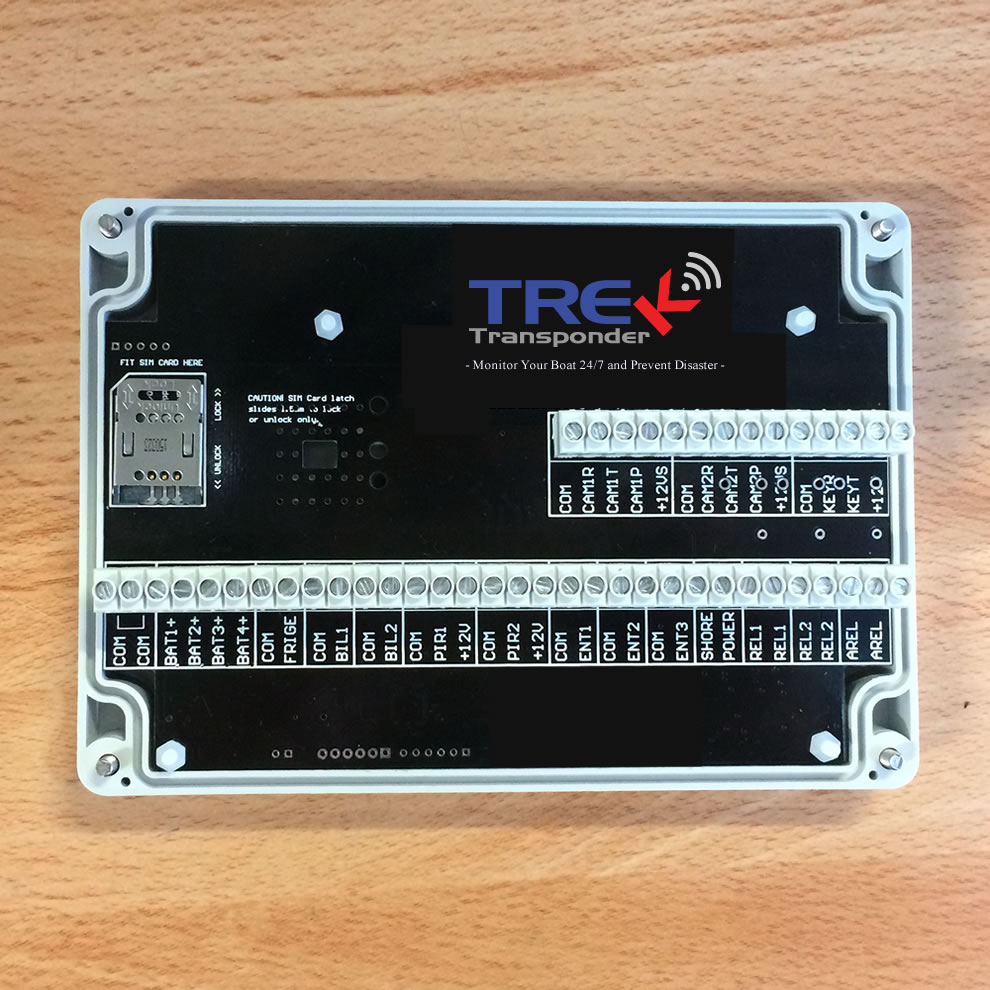

• Cable terminations:Screw terminal strip
• Operating Temperature: 0 – 70 Deg C
• Weight: 300g

Communications

• Antennas: Built in, external optional
• 4G
