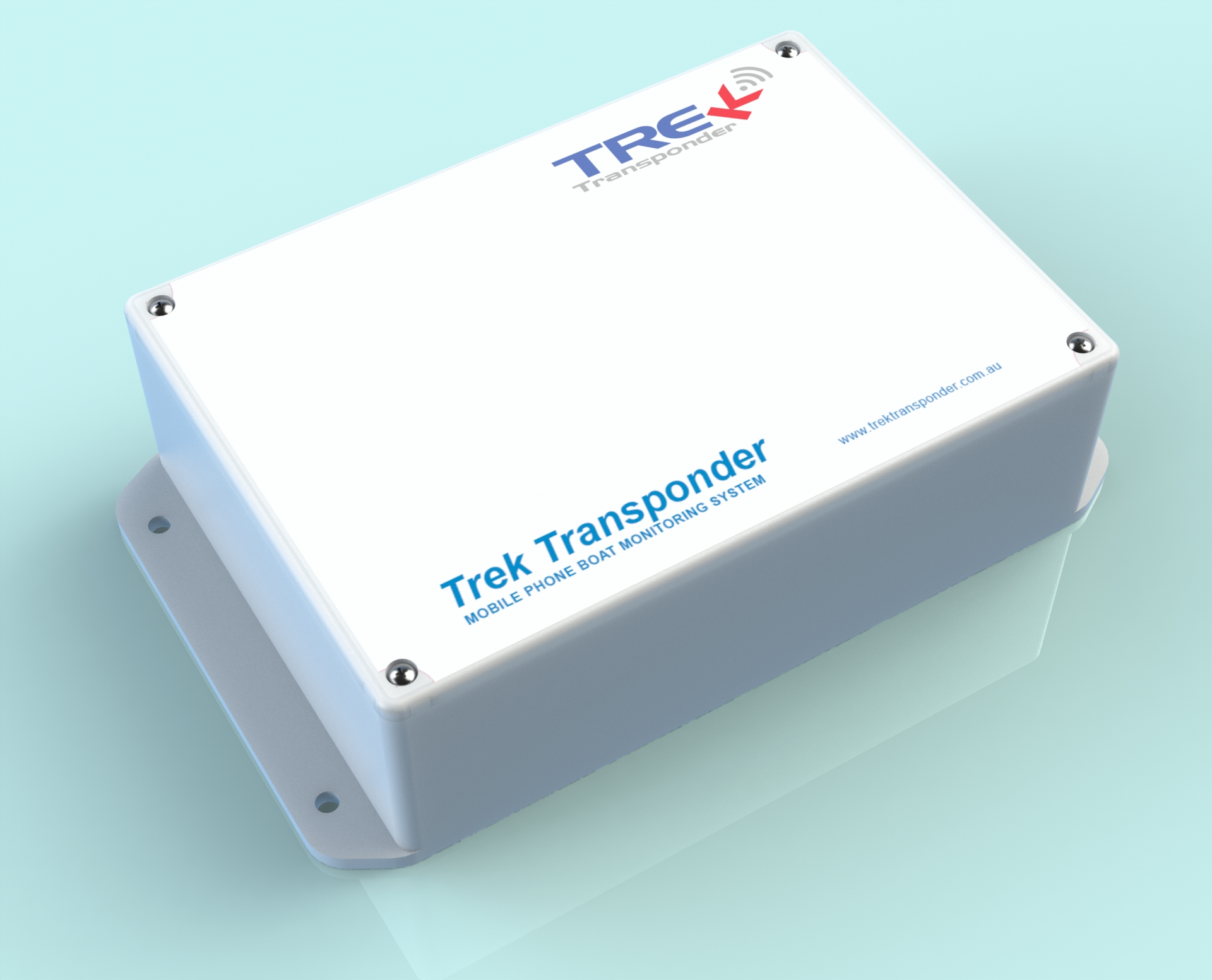

SM100HD-NFP Boat Alarm System

Description

Model SM100HD-NFP is identical to model SM100HD but has no LED indication on front panel, and cameras are not included with the unit.

Simply connect the SM100HD-NFP to your boats batteries, add bilge float switches, cameras and plug in any common Australian SIM card and the unit is immediately monitoring your boat and its location, and can send alarms and pictures to your phone and up to 5 others by SMS. This model Trek Transponder can also call you if there is an alarm in case you are worried about sleeping through an SMS or are in a noisy environment.

You can also add PIR movement sensors or door switches to monitor security, temperature sensor for fridge and any compatible siren/flashing light.

Cameras are invaluable for seeing in detail the cause of an alarm on board, as well as who is on board.

Early warning of problems and knowing what they are gives you the opportunity to solve those problems before they become expensive, disasters or insurance claims.

This model Trek Transponder also features fully automatic periodic sending of status reports or camera images, selectable from hourly to 24 hourly.

Trek Transponder SM100HD-NFP has three output relays, one is automatic and triggered by security inputs and is intended for sirens or flashing lights. The second pair are manually controllable by SMS from your phone and can be used for pumps, deck lights and many applications.

Trek Transponder SM100HD-NFP operates from 12V or 24V and draws only 0.05A so is easy to install on most boats. Standby power use is so low its no problem for boats on moorings. No special SIM or Data SIM is required, only a simple phone SIM.

Trek Transponder is Australian Made and has a 2-year warranty.

Trek Transponder SM100HD-NFP Specifications

• 4G Ready (Free Aldi SIM included)
• GPS Built in Geofence (alarm if boat moves outside designated area)
• 12V or 24V Operation
• Inputs for up to two High Definition cameras with IR for night
• 4 Battery Monitor Inputs
• 2 Bilge Float Switch Inputs
• 2 PIR Movement Detector inputs

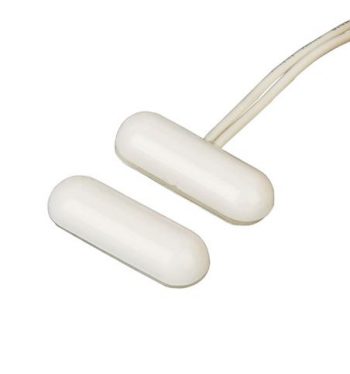

• 3 Hatch / Door Entry inputs
• 2 6V Power outputs for PIRs (12V optional)
• Fridge Temperature Input: -25 to +105 Deg C
• 1 Shore Power Input
• 2 Manual relay output (often used for deck lights or fridge on/off))
• 1 Triggerable relay output (often used for siren)
• Inputs and Outputs can be renamed (ie ENT1 to Saloon)
• Input OK/Alarm can be inverted (ie NO to NC)
• Built in Pitch and Roll motion sensor (detects boat listing or high seas)
• Auto dial will call you as well as SMS you if there is an alarm (wake you at night)
• Automatic periodic reporting from hourly to 24 hourly
• Works with most Australian SIM cards  (global version on special order)
• External GPS and External 4G Antenna option
• Optional Bluetooth Interface for local control without SMS
• Optional 90dB Buzzer on-board acoustic alarm
• NMEA-0183 Nav Data Output for free OpenCPN Chart Plotter
• Anchor Watch for cruising

Front Panel Indications

• No

Outputs

• Automatic relay 1 (10 minute contact closure triggered by PIR and Entry):   4A 30VDC  N.O. solid state
• 2 x Manual Relay (controlled by SMS):  4A 30VDC  each, N.O.  solid state
• PIR Power: 2 x 6V (12V optional) regulated over 8V to 32V input voltage range

Power

• Operating voltage: 8V to 30V   (12V 24V systems automatically detected)
• Operating power: < 1W

GPS

• Antenna: Built in, external optional
• Channels: 48, parallel tracking
• Correlators: 400,000
• Frequency: L1 (1575MHz)
• Horizontal Accuracy: < 3m

Physical

• Size: 171x121x55mm
• Case Material: Polycarbonate
• Mounting:Flange left and right side
• Cable terminations:Screw terminal strip
• Operating Temperature: 0 – 80 Deg C
• Weight: 300g

Communications

• Antennas: Built in, external optional
• 4G
